PBX Settings

PBX Settings

Nova PBX → System → PBX Settings holds configuration that applies to your whole phone system rather than any single extension: the default outbound caller ID, the SIP registration access list, the provisioning PIN your desk phones use to fetch their configuration, and whether every extension must carry a dispatchable 911 location.

Video

Watch on YouTube ↗

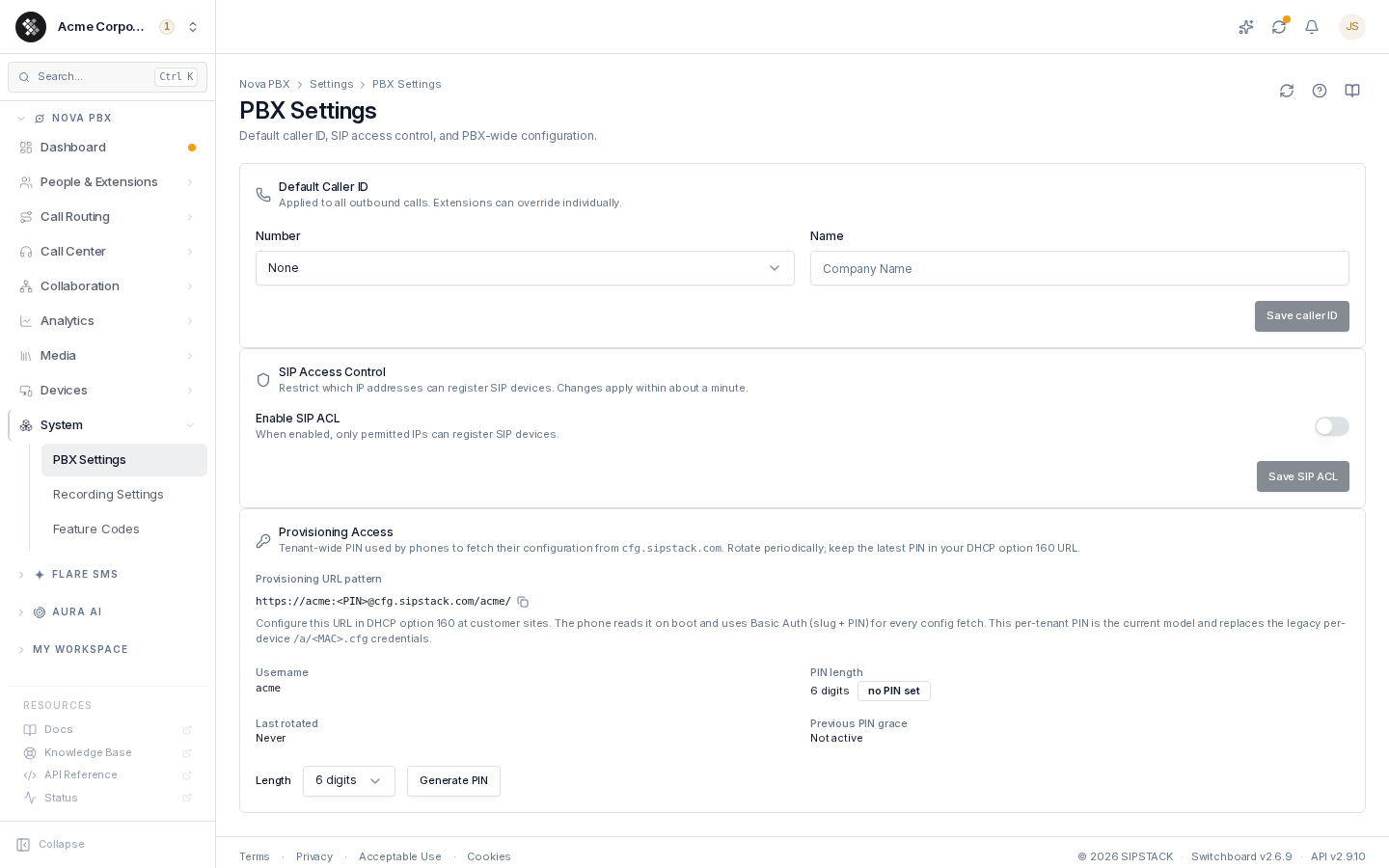

Screenshot

Note

This page requires the Manage PBX settings and devices permission. Saving the SIP access control list additionally requires the organization owner role — a misconfigured ACL can lock every phone out of registration, so it is deliberately held to the highest level.

Default Caller ID

The number and name presented on outbound calls when an extension doesn’t set its own caller ID. Extensions can override this individually on their own settings; if they don’t, this default applies.

Field	What it does
Number	Pick from your organization’s voice-capable phone numbers. Only active numbers from your inventory are offered — you cannot present a number you don’t own. Select None to clear the default.
Name	The display name (CNAM) you want presented, e.g. “Acme Corp”. Leave blank to clear.

Click Save caller ID — the change is staged and pushed to your PBX automatically; the next outbound call uses the new value.

Tip

The number changes take effect immediately, but the displayed name is resolved by the receiving carrier’s CNAM lookup, which caches aggressively. Name updates can take 24–72 hours to propagate. If outbound calls show “UNKNOWN” despite a saved name, contact support for a STIR/SHAKEN provisioning check.

SIP Access Control

An IP allow/deny list for SIP device registration. When disabled (the default), any IP may attempt to register — registration still requires valid SIP credentials. When enabled, the rules below decide which networks may even try.

Typical uses:

• Lock to office IPs — only desk phones in your physical offices can register.
• Allow a VPN range — extend access to remote workers on your VPN’s CIDR block.
• Block known-bad addresses — deny specific networks you’ve seen probing registration.

Configuration

Field	What it does
Enable SIP ACL	Master switch. Off = all IPs may attempt registration.
Default action	What happens when no rule matches. Permit all (allowlist mode) lets everything through except your deny rules; Deny all (blocklist mode) blocks everything except your permit rules.
Rules	An ordered list of permit / deny entries against an IP or CIDR network, with an optional label. Rules are evaluated in order — first match wins.

Networks must be a bare IP (192.0.2.10) or CIDR notation (192.0.2.0/24, IPv6 supported). Hostnames are not accepted, and invalid entries are rejected at save time.

Click Save SIP ACL, then apply your staged changes (the Apply Changes bar at the top of the portal) to push the new list to your PBX. Changes take effect within about a minute of applying.

Caution

In deny-all mode with no permit rules, every SIP registration will be blocked after you apply — the page warns you before you save. If you lock your phones out, disable the master switch, save, and apply; registrations resume with credential checks only.

Provisioning Access

Desk phones fetch their configuration from cfg.sipstack.com using a single organization-wide PIN (HTTP Basic Auth: your tenant slug as the username, the PIN as the password). There are no per-device passwords. This section shows the URL to configure in DHCP option 160 at your sites, and manages the PIN itself.

Field	What it shows
Provisioning URL pattern	https://<slug>:<PIN>@cfg.sipstack.com/<slug>/, with the PIN masked. Copy it and substitute the real PIN. The register-device page shows the same value, labelled Provisioning URL (DHCP option 160).
Username	Your tenant slug (the Basic Auth username).
PIN length	6, 8, or 10 digits — 8 for organizations created since September 2026; existing organizations keep the length they have until you choose another.
Last rotated	When the PIN was last regenerated. Blank until someone has generated one.
Previous PIN grace	Whether the previous PIN is still within its 24-hour grace window.

Generating or rotating the PIN

Every organization is created with a PIN already hashed in place, but it has never been shown to anyone. Last rotated reads Never until someone reveals one, and registering phones is blocked until that first reveal — nobody could put an unknown PIN into DHCP. Because a PIN technically exists from the start, the button reads Regenerate PIN from day one; it reads Generate PIN only for an organization that has no PIN at all.

1. Pick a Length (6 / 8 / 10 digits) and click Regenerate PIN (Generate PIN if the organization has no PIN at all).

2. Confirm in the dialog. If a PIN is already in use, the old one stays valid for a 24-hour grace window — both old and new PINs are accepted during that time.

3. The new PIN is revealed once, together with the full provisioning URL. Save it immediately.

   The PIN is shown once when generated. Lost it? Rotate it in Provisioning Access — phones keep working on the old PIN for 24 hours.

4. Update DHCP option 160 at every site within the grace window, or phones will lose provisioning access when the old PIN expires. Entry steps per DHCP server →

Treat the PIN as a password

The URL contains it, so anyone who can read your DHCP configuration can read the PIN — put phones on their own DHCP scope. After 100 failed authentication attempts against your organization within an hour, provisioning is paused for the rest of the hour; a wrong PIN pushed to a whole office can trigger that quickly.

See Devices and Phone Profiles for what provisioned phones actually receive.

Emergency calling (911)

Require a 911 location on every extension. When this is on, an extension can only be saved once you have told us which physical address it dials 911 from. If you try to save without one you get a message asking you to pick a location — add one under Nova PBX → Locations first if the list is empty.

Caution

Before you turn it off. Turning it off lets you save extensions that have no dispatchable 911 location. If someone dials 911 from one of those extensions, emergency services may not receive the street address, floor, or suite they need to reach the caller — RAY BAUM’s Act §506(b) requires that address to be present. SIPSTACK still routes 911 calls either way, but we can only pass on an address you have given us. Leave it on unless you are mid-migration and know exactly what you are turning off.

Every change to this setting is recorded in your Audit Log, including who made it and when. The same setting is also offered in step 1 of Set Up Your Team, pre-filled with the value your account currently has.

While the requirement is on, your Finish setup checklist adds an Add your office location step ahead of Create an extension, because the extension cannot be saved until the location exists.

Troubleshooting

Saved an ACL rule and now phones can’t register. The rule set most likely excludes the network the phones are on. Disable SIP Access Control, save, apply, then re-add the missing CIDR before re-enabling.

Caller ID changed but recipients still see the old name. Carrier CNAM caching — see the tip above. The number updates immediately; the name lags.

How do I undo a change? Settings on this page have no undo — re-edit and save the previous value. The Change Log shows what was applied and when.
